Gen6-AglxTM

sAQM100 – Solar Air Quality Monitor
sAQM100 – Solar Air Quality Monitor
Mobiveil’s sAQM100™ is an Air Quality Monitoring system to measure outdoor air quality and to provide real-time localized air quality index.It’s a robust Solar powered platform, with Long range communication interface (LoRA), cloud-based data processing, location based view, metrics of adjacencies, history of statistics, secure online access and options to integrate with variety of host and applications.
Download

Overview

Mobiveil’s Gen6-AglxTM Accelerator platform is a PCIe® Gen6 add-in card with latest Intel’s Agilex I series FPGA. It supports High-Performance Applications, such as Accelerators, Artificial Intelligence and Machine Learning.
  • Ideal platform to run CXL applications that maintains memory coherancy between devices, allowing resource sharing for higher performance
  • Suitable for emerging data processing applications in AI, media, image and language processing
  • Genomics
  • Video Processing / Transcoding
  • Financial Computing
  • Database Search and Analytics
  • Machine Learning Suite for Inference (Tensorflow, Caffe and MXNet)
  • Neural Network Inference for Image Classification
  • RoHS Compliant
  • PCIe Gen6 1.0 Compliant
  • CE/FCC to be certified
  • Gen6-AglxTM reference platform
  • Software drivers
  • User guide

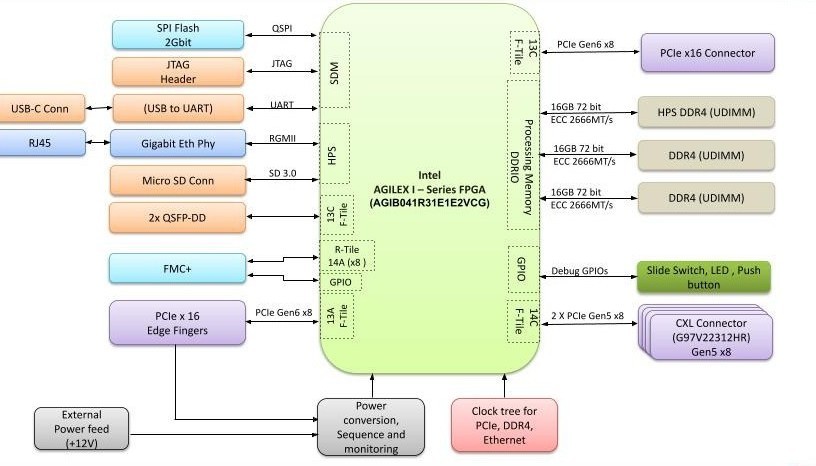

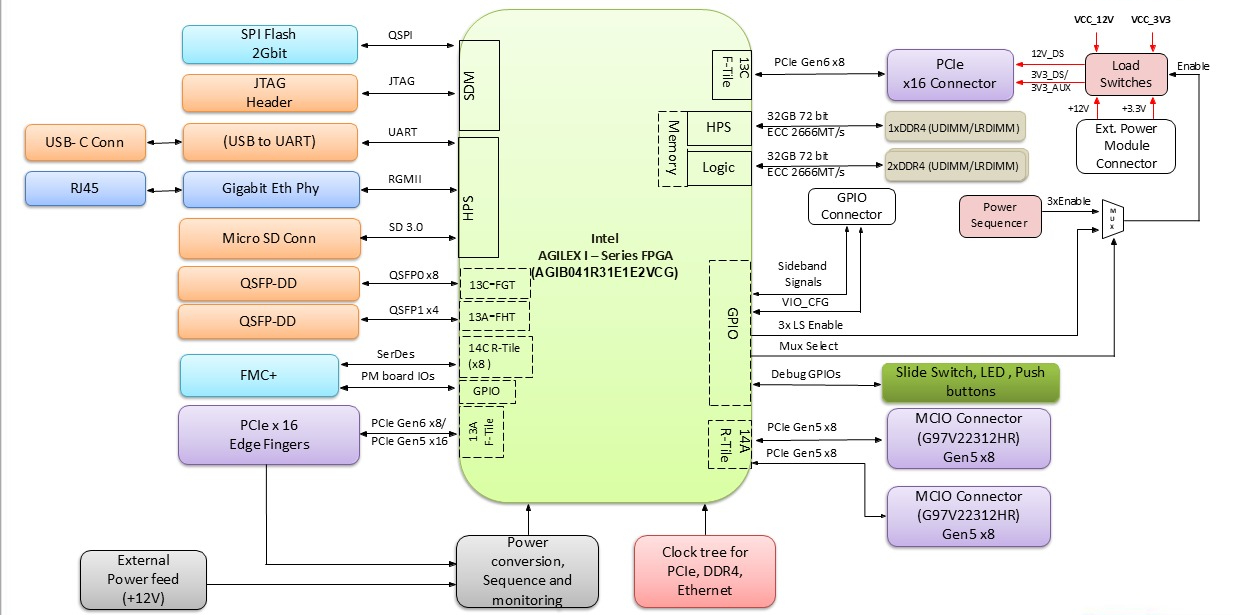

Gen6 Block Diagram
Interface specifications
• PCIe Gen6 x 8 at edge finger • PCIe Gen6 x 8 at PCIe connector • Two PCIe Gen5 x 8 at CXL IO connector (CXL Host Slot)
Memory specifications
• Supports upto 64GB of DDR4 memory for FPGA Logic and Processor subsystem
Environmental specifications
• Operating temperature : 0 deg C to 55deg C • Storage Temperature : -20deg C to +70deg C • Humidity : 10% to 90% non-condensing, Airflow 400LFM
Mechanical specifications
• PCIe Full length, Full height form factor 312mm x 111mm
Power specifications
• Typical power consumption : Less than 100W • Support for Auxiliary Power feed
FPGA
• Intel Agilex I series
Standard compliance
• PCIe Base specifications 6.0 • CXL 1.1, CXL 2.0 (TBD)

Get the Detailed Product Brief here

Download
